Introduction
The capacity to construct smart devices and connect them to the digital world is becoming increasingly crucial in the area of the Internet of Things (IoT). The Arduino Integrated Development Environment (IDE) in conjunction with the ESP32 microcontroller is a critical tool in this domain. This potent mix gives developers an easy-to-use platform for designing, programming and deploying a wide range of IoT applications. In this post, we will introduce you to the Arduino IDE and the ESP32, as well as their capabilities and benefits, as well as how they may be utilized to develop new IoT solutions.
Understanding Arduino IDE:
The Arduino IDE is a cross-platform development environment that was created exclusively for programming Arduino boards. It has a user-friendly interface for creating, compiling, and uploading code to Arduino-compatible microcontrollers. The IDE supports the C and C++ programming languages and makes development easier by offering a large library of pre-built functions and example code.
The Arduino IDE has a user-friendly code editor with syntax highlighting, autocompletion, and error checking, making it appropriate for both novice and professional coders. It also has a serial monitor for debugging and communication between the microcontroller and the PC.
Introducing ESP32:
The ESP32 is a flexible microcontroller that has grown in popularity in the Internet of Things ecosystem. Espressif Systems created it, and it comes with a robust collection of capabilities like Wi-Fi and Bluetooth connection, plenty of computing power, and a variety of input/output choices. The ESP32 is perfect for IoT projects since it excels in low-power applications and can be programmed using the Arduino IDE.
Key Features and Benefits:
- Connectivity: The ESP32’s built-in Wi-Fi and Bluetooth capabilities enable seamless communication and integration with other devices and networks, expanding the possibilities for IoT projects.
- Processing Power: The ESP32 boasts a dual-core processor, providing sufficient computational capabilities for complex tasks and enabling multitasking in your projects.
- I/O Flexibility: With a plethora of GPIO pins, analog inputs, and various communication interfaces such as I2C, SPI, and UART, the ESP32 offers extensive flexibility in connecting and controlling external sensors, actuators, and modules.
- Energy Efficiency: The ESP32 is designed to operate efficiently in low-power scenarios, making it suitable for battery-powered devices and applications where power consumption is a critical factor.
Creating IoT Projects with Arduino IDE and ESP32:

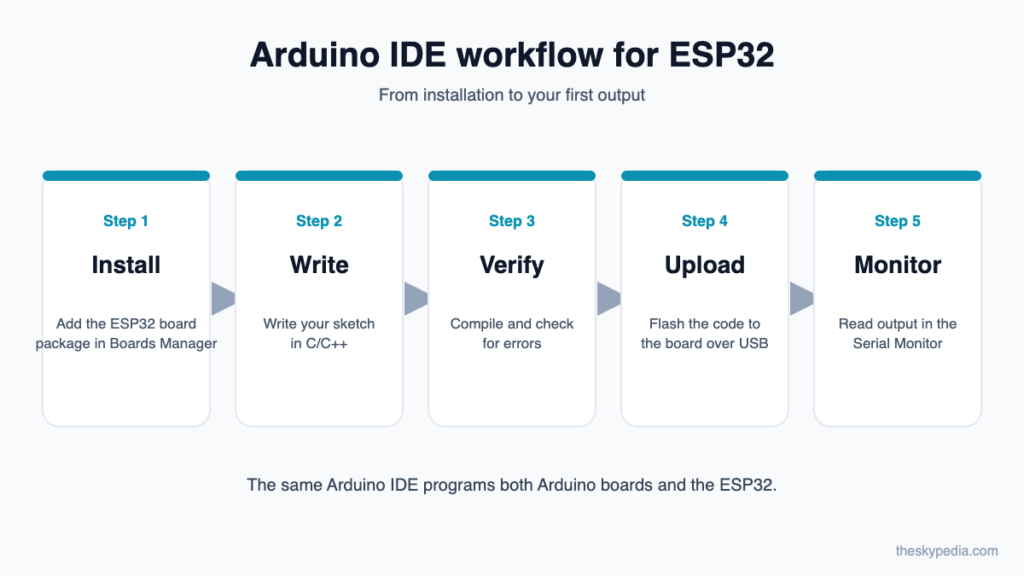

To get started with Arduino IDE and ESP32, follow these steps:
- Install Arduino IDE: Download and install the latest version of Arduino IDE from the official website (https://www.arduino.cc). Ensure that the ESP32 boards are supported by the installed version.
- Add ESP32 Support: Open Arduino IDE and go to “File” -> “Preferences.” In the Additional Board Manager URLs section, enter the following URL: “https://dl.espressif.com/dl/package_esp32_index.json.” Then, go to “Tools” -> “Board” -> “Boards Manager” and search for “ESP32.” Install the ESP32 board support package.
- Select Board and Port: Connect your ESP32 board to your computer via USB. In Arduino IDE, go to “Tools” -> “Board” and select the appropriate ESP32 board variant. Next, go to “Tools” -> “Port” and select the port to which your board is connected.
- Upload Code: Write your code in the Arduino IDE, utilizing the available libraries and examples. Once ready, click on the “Upload” button to compile and upload your code to the ESP32 board.
Conclusion
The Arduino IDE with ESP32 provides a robust and user-friendly platform for constructing IoT applications. Their combination creates a dynamic environment with numerous features, networking possibilities, and a welcoming community. Whether you are a novice or an experienced developer, the Arduino IDE with ESP32 may open up a world of possibilities for developing unique and impactful IoT solutions. So, grab your ESP32 board, fire up the Arduino IDE, and start your IoT journey today!
